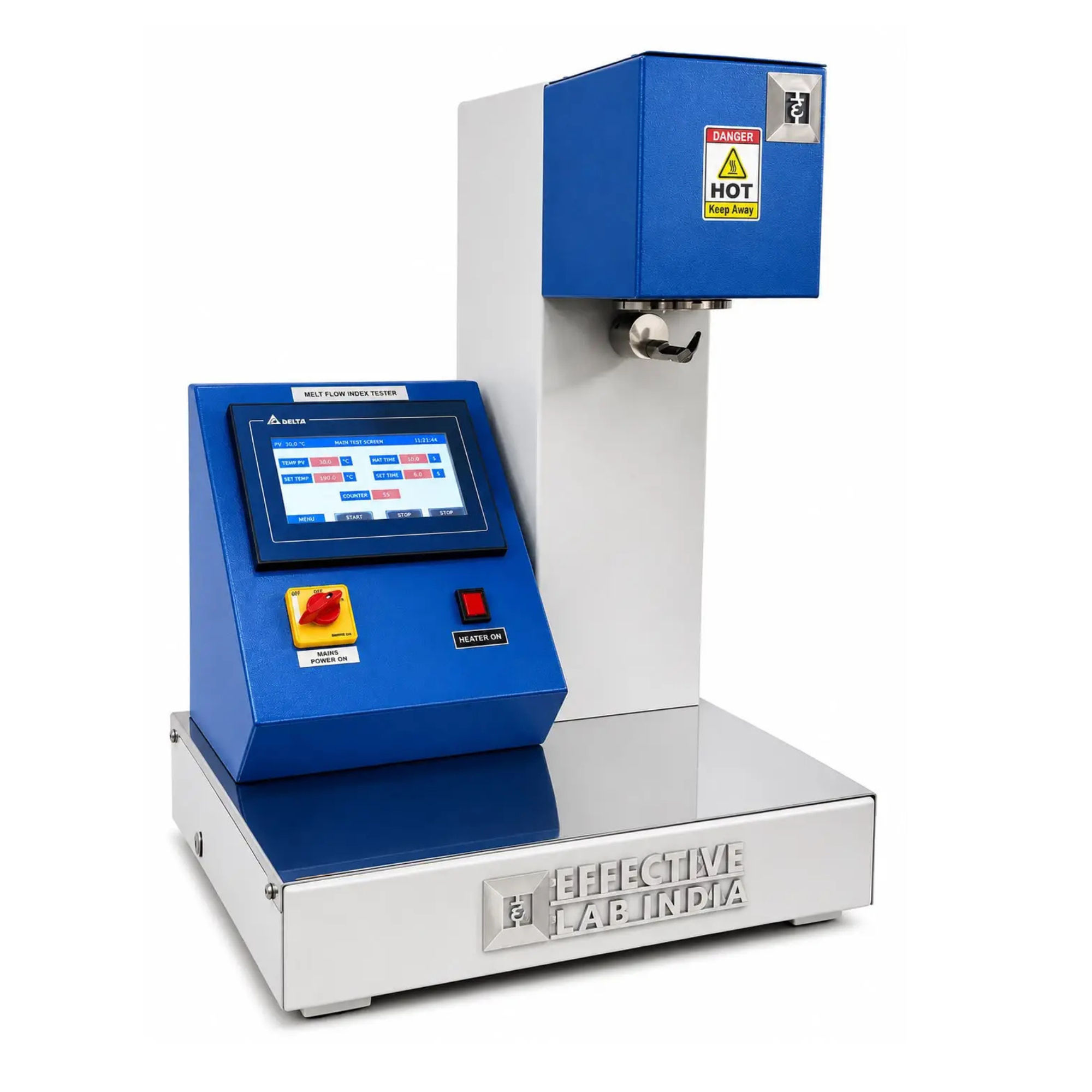

Melt Flow Index Tester
In the plastic and polymer industry, the Melt Flow Index Tester (MFI) is the most important testing equipment. Polymers like materials that melt at certain temperatures, this amazing instrument will help measure the resistance of materials. A Melt Flow Index Tester is used for calculating the melt flow index value of (inorganic or organic polymer specimens). Mass of Melted Polymer in 10 minutes at a particular weight, pressure and temperature is the MFI value of a sample. By using a MFI Testing Machine, melt flow rate and viscosity can be measured. A specifically sized specimen will be placed in a heated barrel with a plunger during this test, it is placed in the barrel to force the polymer to melt a load on the top is inserted. Weight should be placed on a piston, after the melting for softening of polymer. (Die or orifice can be used for forcing it). A high melt flow index is involved in a quality polymer.
Defend Your Products from Corrosion
Advanced Corrosion Salt Spray Chamber for rigorous testing, ensuring durability in harsh environments
MFI (melt flow index) tester consists of a heated barrel to store samples and a piston assembly. With the help of melted plastic and weights, a specific amount of load is applied to the piston. (The plastic is extruded through capillary tubes). Melted plastic is weighed in 10 minutes by which MFI can be calculated. Grams per minute is the result expression.
In addition, Melt Flow Index can be calculated with the help of the Melt Flow Index Formula.
MFR is also called mass flow rate or melt volume rate in many industries.
Within 10 minutes the weight of granules in grams is concluded as the MFR (melt flow rate) of the plastic. And considered as Melt Flow Index, Melt Index or MI. Melt Flow Tester also helps to measure the shear rate, the viscosity of polymers, molecular structure and shear stress. MFI can also be used for measuring the melting viscosity and flow resistance of polymers at specific applied pressures and temperatures.
With the MFI test here are several things likely to get
- The typical index value can be calculated with its help.
- The quality of index material can be checked by using the MFI test.
- Laboratory equipment can be used in a product development settling procedure for checking the quality of a material.
- Quick easy comparisons can be done with new material suppliers.
- Moreover, you can get flow property estimation with the help of this MFI test.
- The behaviour of a polymer can be predicted with several processing techniques in MFI test.
- Display: LED (Digital)
- Temperature Range: Ambient to 400°C.
- Accuracy: ± 1°C.
- Optional Accessory: Lab Weighing Balance 200gms
- Sample Type: Resins or Plastics
- Standard Accessory: Orifice, Piston, Spoon, Plumb Line, Funnel, Material charger,
- Resolution: 0.1°C.
- Timer: Digital Preset upto 999 seconds (Changeable to Hrs:min:sec)
- Dimensions of piston head: 9.47mm diameter
- Dimensions of Die: 2.095mm ± 0.005mm
- Weights: 1.2 kg; 2.16 kg; 3.8 kg & 5 kg
- Paint: Powder Coated Grey and Blue Combination along with zinc/bright chrome plating.
- Sample Cutting: Automatic motorised
- Power Supply: Single Phase, 220-240 AC, 50 Hz.
- Mirror, Tweezers, Barrel cleaner, Orifice cleaner, Sample cutter and Accessory stand
- Diameter of heater tube cavity: 9.55mm ± 0.005mm
- Sensor Type: PT 100
- Temperature Controller: PID
- Microprocessor based PID controller.
- Die Steel barrel for uniform and consistent heating of barrel/test cylinder.
- Corrosion resistant finish
- Digital Preset Timer for accuracy and repeatability.
- Automatic sample cutting.
Know About Our Products
A Melt Flow Index (MFI) Tester is a critical instrument used in the plastics and polymer industries to measure the flow properties of thermoplastic materials. The MFI value, also known as the Melt Flow Rate (MFR), provides an indication of the viscosity of a material when subjected to a specific temperature and load.
MFI is regarded as an important characteristic because it offers information on the mass flow rate of the polymer.
The key external elements that affect both the melt flow rate and the extrudate swell ratio evaluated by a melt flow indexer are temperature, load, and the L/D ratio of a capillary die.
The Pricing of MFI Tester starts from 50000 INR TO 90000 INR in India.
