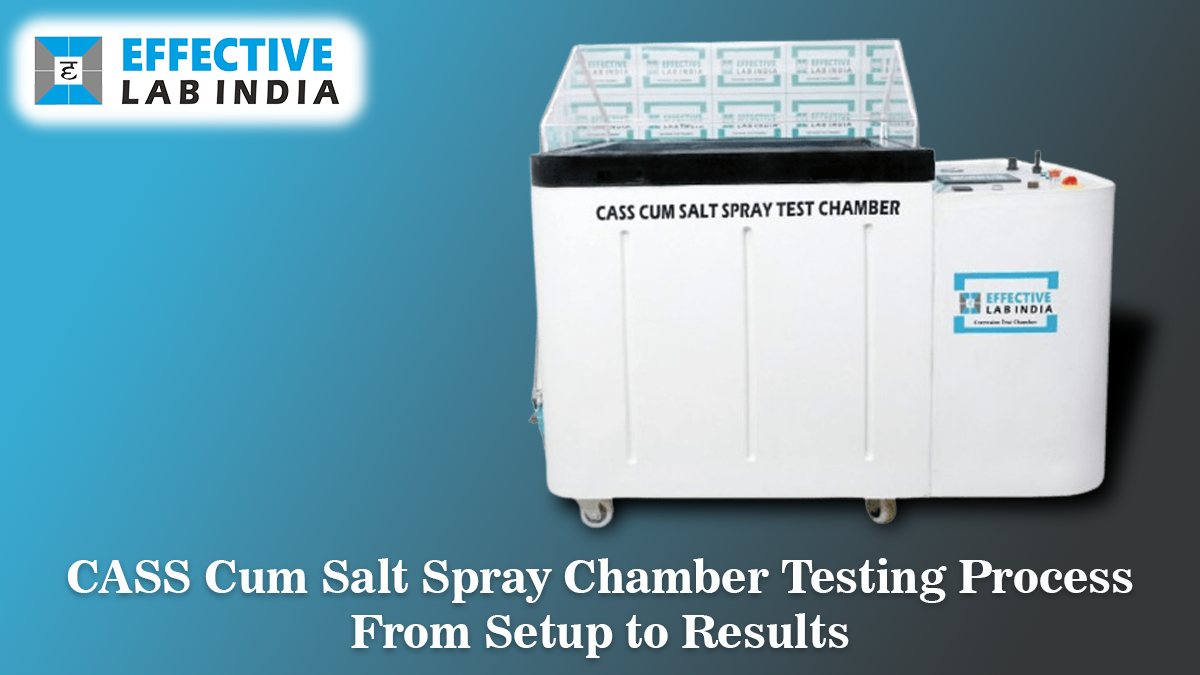

CASS Cum Salt Spray Chamber Testing Process: From Setup to Results

The CASS Cum Salt Spray Chamber is one of the most popular and advanced accelerated corrosion testing equipment in the industry. From manufacturers testing to ensure metal coatings can withstand pressure, mechanical wear, and thermal shock, to quality control engineers assuring product performance and reliability – this testing chamber is an integral part of your operations. This complete guide takes you through every little aspect of the CASS Cum Salt Spray Chamber testing process step by step — from setup to result analysis and everything else in between, ultimately helping you understand how important picking the right CASS Cum Salt Spray Chamber Manufacturer can be for your testing success.

What is a CASS Cum Salt Spray Chamber?

They’re very specific about the corrosion testing equipment, so we can build that CASS Cum Salt Spray Chamber. CASS or Copper-Accelerated Acetic Acid Salt Spray is a test that uses a copper chloride, acetic acid, and sodium chloride-based media for the test solutions to simulate extreme corrosive environments in much less time than traditional salt spray tests.

The CASS test is an accelerated corrosion test which can be applied to any kind of surface such as decorative nickel-chromium coatings, anodized aluminum surfaces, and many industrial protective coatings that are more aggressive than standard NSS (Neutral Salt Spray). The chamber can generate and sustain a controlled fog environment to meet international standards (ASTM B368, ISO 9227) for consistent and repeatable test conditions.

Being ‘Cum’ and chamber can do both test Standard salt spray test as well as aggressive CASS from a single unit become it a versatile add-on as well as cost saving solution in any quality testing lab.

The Importance of the CASS Test in Modern Industries

The Salt Spray Chamber has been an industry standard for corrosion testing, but many new applications require a more severe assessment. The exposure of products to extreme outside elements in a range of environments, from coastal atmospheres to industrial chemicals or automotive conditions, requires testing that simulates accelerated real-world corrosion. The CASS provides this need, providing results 8 to 10 times faster than traditional salt spray testing.

Some of the main industries that utilise CASS Cum Salt Spray Chamber testing are-

• Automotive industry — for examination of chrome-plated parts, bumpers, and decorative trims
• Electroplating industry — to check the quality of nickel, copper, and chrome deposits
• Aerospace and defense — for structural elements subject to marine environments
• Consumer electronics — to test coatings on casings, connectors, and metal components
• Materials and fasteners — for galvanised and coated products used outdoors
• CASS Solution – the Heart of CASS Testing

Now, before going to the testing process, let us first understand what the CASS test solution is and why it is special. The solution to be tested is prepared with sodium chloride (NaCl) in distilled water, and glacial acetic acid is added to adjust the pH to a range between 3.1 and 3.3. Moreover, copper (II) chlorides dihydrate is also added to this solution in a concentration of 0.26 g/L, forming an extremely aggressive corrosive environment that provides acceleration of metal coatings degradation and enables its long-term performance prediction within a short period of time.

The CASS Cum Salt Spray chamber manufacturer must be a trustworthy skin as the spray entity, the solution is acidic and used to test the corrosion resistance, so that the internal coatings do not corrode. Chambers of higher quality are often made from fiberglass-reinforced plastic (FRP) or other corrosion-resistant materials that do not lose structural integrity after extended test cycles.

Suggested Post: What is Ozone Test chamber and their applications and uses?

CASS Cum Salt Spray Chamber Test Procedure Step By Step

Step 1: Pre-Test Preparation

Accurate test results are based on proper preparation. First, clean all test specimens thoroughly with an appropriate solvent to remove grease, oils, and contaminants. Specimens must be processed with gloves in order to prevent possible skin contamination. Use a non-corrosive marking method to mark every specimen for identification during the test cycle.

Prepare the CASS test solution according to the requirements of the test standards. Use a calibrated pH meter to determine the pH and adjust with acetic acid if needed. And this preparatory step is vital — get the solution chemistry wrong, and your results are spoiled. A Salt Spray Chamber made by a reputed manufacturer will have one of the most complete solution preparation guides and built-in instrumentation to ensure that proper test parameters are monitored and maintained.

Step 2: Preparing and calibrating your chamber

Confirm the following parameters are set up correctly before putting specimens inside the chamber:

• Temperature: As according to ASTM B368, chamber temperature of 50°C ± 2°C
• Salt solution reservoir: Fill with the prepared CASS test solution
• Atomizer pressure: Compressed air pressure of 0.7 to 1.4 kg/cm²
• Collection rate: Check that the fog collection rate is in the range of 1.0 to 2.0 mL/80 cm²/hour
• pH of collected fog: 3.1 ~ 3.3

Step 3: Placing the Specimen into the Chamber

Tilt the test specimens at an angle of 15° to 30° with respect to the vertical position so that the corrosive fog can be distributed evenly on the surface. Make sure no specimens touch each other or the chamber walls, which could cause uneven fog exposure. The flat panels must be positioned with the test surface facing upwards at the specified angle.

Test specimens must be centrally placed so fog can move around them freely. The CASS Cum Salt Spray Chamber Manufacturer offers racks and holders for different specimens, shapes, and sizes to comply with the test standards.

Step 4: Executing the Test Cycle

After the chamber has been loaded and sealed, start a test cycle from the digital control panel. Duration of the CASS test. As above, you will find differences in the durations based on coat type and the standard applied. As an illustration, a standard CASS test might execute for 8,16, or even 24 and so forth hours straight. For this duration, the chamber runs continuously, and all metrics (temperature, fog density, etc.) are constant.

High-enhanced CASS Cum Salt Spray Chambers from the world’s best brands come with embedded programmable logic controllers (PLCs), digital timers, and auto solution refill systems, facilitating unattended operation across long test durations.

Step 5: Monitoring and Intermediate Review

Test the fog collection rate by regularly checking bubble chart collectors inside the chamber. Next, using a pH meter that has been calibrated for the analysis of the sample solution, verify the pH. Check the temperature on the digital display to confirm it stays at its recommended temperature. Should any drift be noted, stop the test and only resume once everything is readjusted back into tolerance.

Step 6: Collect and Review Specimen Analysis

At the end of the test cycle, gently extract the specimens from the chamber. 1837 Disco Road, Scott, 50-70 South St., Pennant Hills. Cleanings of Coated Disco Products – Only rinse with clean water, no more than 40°C, to remove salt deposits residual behind without disturbing corrosion products. Let specimens air dry and examine no more than 1 hour post-removal.

Check specimens visually and under magnification for signs of corrosion such as blistering, pitting, rust staining, and loss of adhesion. Assess the degree of corrosion according to the relevant standard, and record results with photographic evidence. Results are compared with the acceptance criteria (defined in the product standards or quality standards applicable).

Interpreting CASS Test Results

Results of the tests are interpreted by checking what the specimen looks like over a certain duration of time. Usually, the following parameters are evaluated:

• Corrosion spots or pits per unit area and their dimensions
• Corrosion ratio: The percentage of corroded area on the test surface
• Blistering or adhesion loss of coating
• Degree of rust creep from scribe or cut edges
• ASTM or ISO rating scales for overall appearance

Training on the appropriate regulation/law/standard is required for proper interpretation of results. Finally, the seasoned quality engineer painstakingly cross-references CASS results with field performance data to confirm that what happens in a screening test correlates with real-world durability.

Suggested Post: Salt Spray Test Chamber Price – Primary Purpose Across All Industries

How to Select the Best CASS Cum Salt Spray Chamber Manufacturer and Suppliers

The quality of the CASS Cum Salt Spray Chamber you use directly affects the result of your tests. Here are six tips to keep in Mind While Characterize CASS Cum Salt Spray Chamber Manufacturer and Providers:

• Meets International Standards such as ASTM B368, ISO 9227 and IS 11864
• Quality of the construction materials — in this case, corrosion-resistant interiors are non-negotiable
• Accuracy of Temperature and Humidity Control Systems
• Availability of after sales service, calibration support, and spare parts
• Automation features, with PLC-based automation and data logging
• Intuitive UI with complete operating instructions

Effective Lab India has retained its title as the industry’s top CASS Cum Salt Spray Chamber Manufacturer and Supplier in India and abroad. Effective Lab India is designed and manufactured by a team of professionals who have the experience to provide equipment that meets the latest.

Highly Accurate & Repeatable Test Results For All Types of Industrial Applications. Each of their chambers is equipped with state-of-the-art PLC-based digital controls that enable the operator to set and monitor temperature, atomization pressure, fog output, and test duration from a single interface.

What makes Effective Lab India stand out from other manufacturers is their utmost commitment to quality at every step of the way — be it choosing raw material or testing the final product. The chambers are constructed with high grade fiberglass reinforced plastic interiors, precision machined atomizers, and industrial heating systems that are designed for extended lifetime use while requiring minimum maintenance.

Effective Lab India also provides an extensive range of Salt Spray Chambers for NSS and ACSS testing as per standard guidelines, making them a one-stop solution for all your corrosion testing requirements. Supported with installation, operator training, calibration, and on-time after-sales assistance by their technical support team to get the best performance out of your chamber during its lifetime.

Effective Lab India is recognised by all customers in automotive, electroplating, aerospace, and hardware industries in India and worldwide for the consistency of product quality, competitive prices, and dependable delivery schedules. Be it a regular Salt Spray Chamber or a complete CASS Cum Salt Spray Chamber, Effective Lab India offers the experience and facilities to cater to your precise needs.

Best Practices To Maintain Your CASS Cum Salt Spray Chamber

The following are the best practices for taking care of the CASS Cum Salt Spray Chamber to obtain consistent performance and long service life as recommended by a leading CASS Cum Salt Spray Chamber Manufacturer and Supplier.

After each test cycle, clean the interior of our chamber to remove any salt and acid deposits:

• Regularly cleanse atomizer and solution delivery lines to avoid clogging
• Inspect and replace seals and gaskets regularly to keep the chamber airtight
• Regular calibration for temperature sensors, pH meters, and pressure gauges, using the adjustable parameters
• Only volume grade distilled or deionized water should be used for solution preparation
• To prevent contamination, you should drain and clean the solution reservoir between test cycles

Conclusion: CASS Cum Salt Spray Chamber Testing Process

CASS Cum Salt Spray Chamber is a must-have for all companies that are dedicated & focused on providing Quality Corrosion Resistant Products. Each stage of the testing process, from proper preparation of solutions and placement of specimens to accurate interpretation of results and conscientious maintenance, plays a role in the reliability of your quality assurance program. Working with a well-known CASS Cum Salt Spray Chamber Manufacturer such as Effective Lab India means that you’ve got the advantage of using an instrument that’s precision engineered and that goes hand-in-hand with expert technical support to make your testing experience smooth and reliable.

Salt Spray Corrosion Test Chamber (CASS)Ensuring that your laboratory has quality, reliability, and service excellence is our top priority, whether you are upgrading/ replacing an existing Salt Spray Chamber or making the investment in your first CASS testing setup. Reach out to Effective Lab India today for more information on their complete list of corrosion testing solutions, and find the perfect chamber for your application.
