Why Packaging Leak Testing Is Critical for Your Business

Leaks in packaging are considered one of the most frequent causes of failure, customer complaints, and even recalls. The smallest flaw in the seal of a bag will cause air or other contaminants to pass through, which will cause the product to deteriorate faster and may even lead to food poisoning.

Leak testing of packaging goes beyond mere quality control and becomes a legal requirement imposed by regulatory authorities and retailers. Therefore, having an effective vacuum leak tester for packaging should be considered more than just an investment in quality, but also in business security.

Consequences of Skipping Vacuum Leak Testing:

• Early spoilage of products and shortened shelf life, resulting in stock disposal
• Complaints from customers and poor reviews are hurting the brand image
• Breaches of regulations and possible product recalls for all manufacturing lots
• Danger of contamination in the packaging of drugs and medical devices – a safety risk to patients
• Waste of raw material, returned shipments, and additional costs associated with manufacturing work
• Loss of access to retail and international markets following third-party audit failure

Suggested Product:
Bursting Strength Tester
Xenon Arc Test Chamber

Effective Lab India: Trusted Vacuum Leak Tester Manufacturer in India

Effective Lab India is among the leading manufacturers, suppliers, and exporters of laboratory testing instruments, located in Faridabad, Haryana. Backed by a world-class manufacturing plant and an efficient R&D department, our vacuum leak testers provide highly accurate results as per the standard requirements for various packaging forms across different sectors.

These vacuum leak testers come in a mild steel body painted with a premium-grade powder coat finish, with highly sophisticated vacuum technology, pressure measuring instruments, and a user-friendly HMI touchscreen interface to assure seamless performance under rigorous conditions.

All vacuum leak testers made for packaging are put through a series of quality inspections before delivery. Complete with calibration certificate, test report, operating manual, and other compliance-related documentation, these ensure audit compliance right from the point of arrival at the destination.

What Makes Effective Lab India the Right Choice:

• History of manufacturing vacuum leak detectors for food, pharmaceutical, and industrial applications in India
• ISO-compliant manufacturing process that involves rigorous quality checks during each manufacturing stage
• The research and development team is consistently enhancing detector sensitivity, reliability, and user-friendliness
• Company-wide services, including installation, commissioning, training, and calibration across India
• Honesty in quotation without any additional costs, and full documentation with each instrument sold
• Flexible manufacturing options, including customisation for unique specimen dimensions and testing pressures
• An after-sales support team dedicated to answering customers’ questions and reducing laboratory downtime

Vacuum Leak Tester for Packaging: Product Overview

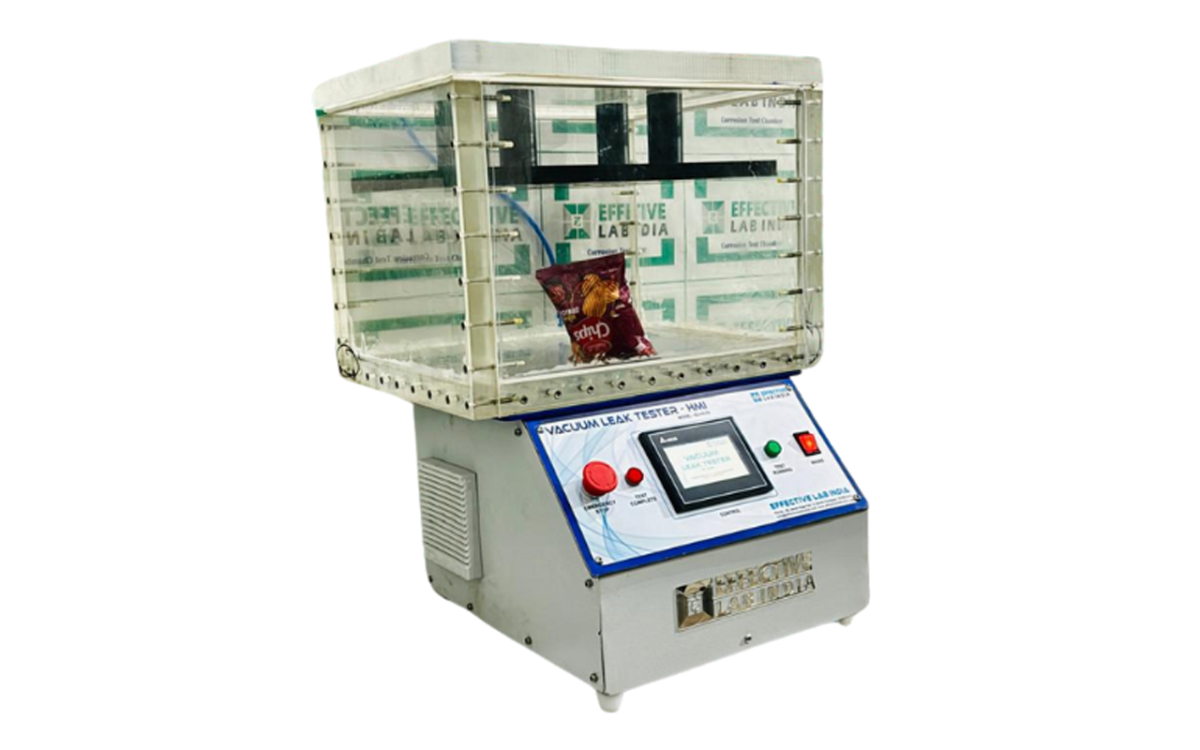

The Effective Lab India vacuum leak detector is a small, benchtop machine that checks the tightness of different types of packaging quickly and effectively.

The test sample, which could be a flexible pouch, hard bottle, blister pack, or thermoform tray, is dipped into water in a clear vacuum chamber. The chamber is subsequently subjected to vacuum to a pre-determined level.

If there is any leakage in the test sample, it will become obvious through the appearance of an air stream that emerges from the packaging.

This bubble emission technique is commonly referred to as the immersion vacuum leak test. It is the most frequently used leak detection technique employed in the testing of flexible packaging.

This technique is not only quick (tests are normally completed within 30 seconds) but also easy, because all you need is water.

The HMI touchscreen offers a user-friendly interface wherein users can input the target vacuum level, the test duration that ranges up to 999 seconds, and the acceptance criteria.

This instrument shows the results in real-time, and such can be digitally recorded for documentation purposes. With its digital pressure sensor, the unit measures vacuum with a least count of 1.0 mm Hg and 0.5% accuracy of measurement.

Key Features of the Effective Lab India Vacuum Leak Tester

Control & Display:

• HMI Color Touch Screen to facilitate easy test configuration, real-time observation, and result visualization.
• Digital Pressure Sensor with a least count of 1.0 mmHg and accuracy of ±0.5% of the measured reading.
• The timer can be set from 0 to 999 seconds.
• Both pressure monitoring and timing features are incorporated in the HMI screen.

Vacuum & Testing System:

• A vacuum pump that is highly advanced in creating and maintaining a vacuum throughout the process.
• A clear acrylic chamber for easy visualization of bubble generation by specimens.
• Rotation of the specimen at 15 revolutions per minute for thorough inspection from all sides.
• Automatic drawdown and release of vacuum upon setting up of parameters.

Data Handling & Traceability

• Data logging for audit purposes and traceability of tests conducted
• The unit has an automatic calibration feature that ensures efficient and precise recalibration without using any additional tools
• Meets the standards of ASTM D3078, ASTM D6653, ASTM D4991-07 (2015), and ASTM F2338

Quality & Safety Standards:

• Mild steel construction with powder coating that lasts a long time in harsh manufacturing settings
• Efficient compact design appropriate for both laboratory use and installation on the shop floor
• Single-phase 220V/50Hz supply system – conforms to Indian industrial electricity standards

How Does the Vacuum Leak Tester Work? Step-by-Step

In the Effective Lab India vacuum leak detector, the immersion bubble emission technique is employed, which is considered one of the easiest and quickest ways to identify leaks in flexible and rigid packages. The entire testing procedure is as follows:

• Stage One - Specimen Conditioning: Place the specimen under test, a pouch, a bottle, a blister pack, or a tray, in the chamber filled with water. Make sure that the specimen is completely immersed in the chamber and closed with its cover.
• Stage Two - Parameter Input: Input the vacuum level (mm Hg) you wish to reach as well as the required testing time (in seconds). You can store the entered parameters as a profile.
• Stage Three – Draw Down of Vacuum: The vacuum pump starts to evacuate the chamber to the required pressure level. Pressure changes are monitored by the digital vacuum gauge.
• Step 4 – Leak Detection Observation: With an increase in vacuum within the chamber, there will be high internal pressure inside the faulty pack that causes the flow of air via the fault site. This process results in a constant flow of air bubbles, which can easily be seen with the naked eye on the clear acrylic lid. The position of these bubbles clearly shows the exact area where there is leakage.
• Step 5 – Pressure Hold Test Analysis: Another way to conduct this test is to check the pressure hold analysis for rigid packs, as it involves assessing the stability of the vacuum during the hold period.
• Step 6 – Test Data Logging: All the data related to the test, i.e., the outcome and its parameters, will be recorded digitally in the computerized data log.
• Step 7 – Vacuum Discharge and Specimen Withdrawal: At the end of the test, the vacuum will be discharged, and the specimen will be withdrawn from the chamber.

Types of Packaging Tested by the Vacuum Leak Tester

The Effective Lab India vacuum leak detector for packaging works with all of the following types of packaging that are generally available:

• Flexible packaging, including zipper packs, spouts, and heat-seal packaging
• Packaging of food items is done in the vacuum technique and MAP packages
• Blisters and strip packaging of pharmaceutical products, including tablets and capsules
  • Trays and FFS trays packed with lidding films
• Rigid bottles and high-density polyethylene containers with induction caps
• Sachet packaging of condiments, powders, and liquids
• Packaging using Tetra pack technology and laminate pouches
• Medical device packaging, such as sterile barrier packaging and procedure packs
• Pressurized packaging, such as aerosol cans and pressure-sensitive cans

Industries That Rely on Vacuum Leak Testing

A vacuum leak tester is a vital instrument for quality control in various industrial applications. The following are some of the major industries where our vacuum leak testers by Effective Lab India are used:

• Food & Beverages: Snacks, processed meat products, dairy products, sauce bottles, beverages, and confectionery – all those products where entry of oxygen impacts quality, shelf-life, and even consumer health
• Pharmaceuticals: Blister packs, ampoules, vials, sachets, and packages for unit dose preparations where sterilization is critical for maintaining effectiveness and safety
• Medical Devices: Sterile barrier packaging for instruments, implants, and disposables
• Cosmetics: Products packed in tube dispensers, moisture-sensitive products in seal-tight containers
• Electronics: Packaging of moisture-sensitive electronics, integrated circuits, and PCB assemblies in sealed bags
• Automobiles: Rubber seals, fluid packs, and precision-engineered parts in a moisture-free environment
• Chemical & Industrial: Drum liners, inserts in IBC drums, and hazardous chemical containers

International Standards for Vacuum Leak Testing

Effective Lab India Vacuum Leak Tester has been designed to meet and calibrate itself according to the internationally recognized standards listed below:

• ASTM D3078 - Standard test method for determination of leaks in flexible packaging by bubble emission
• ASTM D6653 - Standard test methods for determining the effects of high altitude on packaging systems by vacuum method
• ASTM D4991-07 (2015) - Standard test method for leakage testing of empty rigid containers by vacuum method
• ASTM F2338 - Standard test method for non-destructive detection of leaks in packages using the vacuum decay method

Conformity to these international standards will guarantee that your vacuum leak test results can be used by international customers, Original Equipment Manufacturers’ certification programs, third-party audits, and regulatory authorities around the world.

Frequently Asked Questions (FAQs)

Q: What is the difference between a vacuum leak tester and a vacuum decay leak tester?

A: The traditional vacuum leak detector device, like Effective Lab India, operates using the bubble generation technique (immersion). In this procedure, the packaging material is dipped in water, and a vacuum is applied in the test chamber. Leaks are determined through the release of bubbles emerging from the leakage point.

This technique is well-suited for flexible materials such as pouches, sachets, and blisters, which provide not only an outcome whether the test item passed or failed but also the exact location of the leakages. The vacuum decaying method for detecting leaks is another form of vacuum testing that does not need water submersion.

It works on determining the pressure decay rate in a closed test fixture and is suitable for destructive testing of rigid packages and some semi-rigid packages. Both methods are based on ASTM standards.

Q: How do I choose the right vacuum level and test duration for my packaging?

Answer: The right vacuum level and holding time will depend on the material used for packaging and the item contained in the pack, along with the specific test standard used.

ASTM D3078 is one of the most widely used test standards for assessing the emissions of bubbles from flexible packaging. As a thumb rule, flexible pouches with food items require a vacuum level of 10 to 27 inches of mercury (254 to 686 mm Hg), with a holding period ranging from 30 seconds to 3 minutes.

Different parameters apply to pharmaceutical blister packs and rigid containers. Technical experts at Effective Lab India advise the appropriate parameters for each packaging type purchased from us, and we have the provision of saving test profiles through our HMI panel.

Q: How often should the vacuum leak tester be calibrated, and does Effective Lab India provide calibration services?

A: For quality control laboratories in food and pharmaceutical industries, calibration of the equipment is advised to be done at least once per year or more often if the equipment is under constant use or if any deviation from the normal performance of the instrument is noted.

The Effective Lab India vacuum leak tester features an integrated calibration option that enables easy calibration to be performed by the lab technician without the need for special devices. In case of third-party or NABL traceable calibration services needed for compliance with quality assurance protocols like ISO 9001, FSSC 22000, or GMP, you can book calibration services provided by us, which will be fully documented.

Get a Quote for Your Vacuum Leak Tester Today

Whether you are installing a new packaging quality control lab, looking to replace an outdated piece of equipment, or scaling your operations in response to retail or regulatory demands, we have the right packaging leak detector at Effective Lab India. Our application engineers will have a deep understanding of your packaging types, output levels, and requirements, and help select the right configuration to suit your needs.

• High-Resolution HMI Display: Provides intuitive navigation and real-time data monitoring.
• Advanced Vacuum System: Capable of generating and maintaining stable vacuum levels for accurate leak detection.
• Digital Pressure Sensor: Ensures precise measurement of vacuum levels with high sensitivity.
• Customizable Test Parameters: Allows for setting specific test durations and vacuum levels to meet various testing standards.
• Data Logging and Storage: Enables recording and storing of test results for future analysis and quality control.
• Built-In Calibration: Facilitates easy and accurate calibration to maintain the reliability of test results.
• Durable Construction: Made from high-quality materials to withstand rigorous testing environments and ensure long-term durability.
• Compliance with International Standards: Meets ISO and ASTM standards,ensuring globally recognized testing accuracy and reliability.
