Rubber Testing Ozone Test Chamber : Specifications & Industry Trend

Rubber Testing Ozone Test Chamber: Rubber and polymer products are subject to persistent environmental biofouling from heat, moisture, UV radiation, and, most importantly, ozone. Parts of rubber exposed to even trace levels of ozone in the atmosphere can degrade — crack, harden, become brittle, and ultimately fail altogether — and that failure can lead to safety issues. Manufacturers in the automotive, aerospace, industrial sealing, and consumer goods sectors rely on scientifically validated corrosion and degradation testing to prevent this. Effective Lab India provides precision-engineered Ozone Test Chambers to help quality manufacturers assess their product durability under accelerated ozone exposure — helping you ensure quality, meet international standards, and bring only reliable products to market.

So, what is an Ozone Test Chamber? & Working Principle & Applications and Industry Use Cases?

Ozone Test Chamber is a unique environmental simulation device that purposefully exposes rubber, elastomers, polymers & coated substances to controlled concentrations of ozone gas. The main aim is to assess a material’s resistance to degradation by ozone, a process that causes surface cracks, brittle behavior, and ultimately the collapse of rubber-based parts.

Rubber Testing Ozone Test Chamber’S Working Principle

Ambient air is pulled through a UV or corona discharge ozone generator, which produces a very specific concentration of Ozone within parts per hundred million (pphm) or parts per million (ppm), used inside an Ozone Test Chamber. The test specimen (typically in the form of a rubber strip or molded part) is installed in the chamber under defined static or dynamic strain. The chamber keeps the temperature (often 40°C) and ozone concentration stable for the whole time the test is being done, according to the standard applied. The specimen is then assessed for cracking, crazing, and surface degradation after exposure.

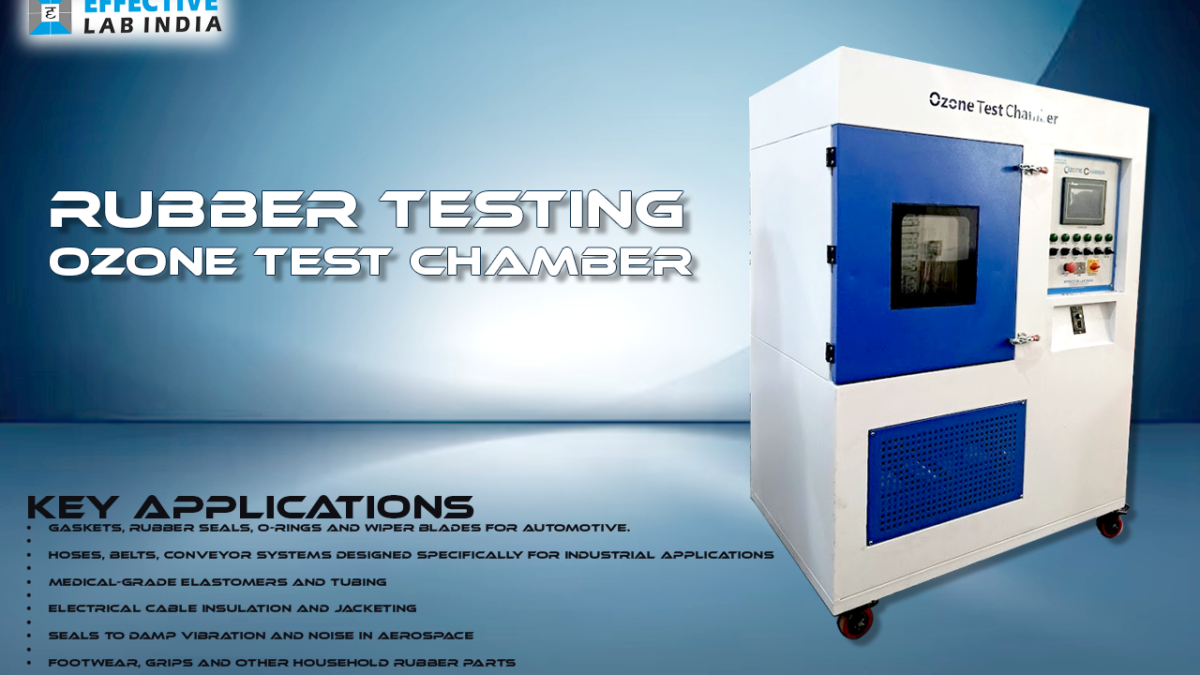

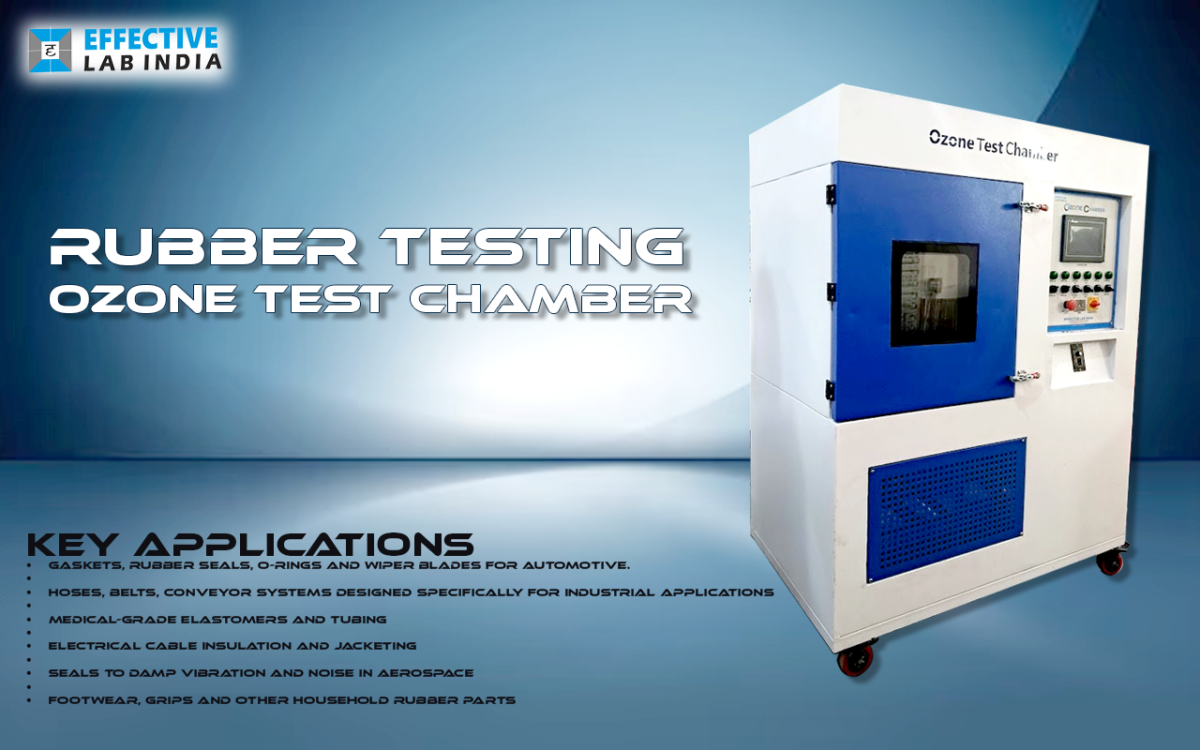

Key Applications:

• Gaskets, rubber seals, O-rings, and wiper blades for automotive.
• Hoses, belts, and conveyor systems designed specifically for industrial applications
• Medical-grade elastomers and tubing
• Electrical cable insulation and jacketing
• Seals to damp vibration and noise in aerospace
• Footwear, grips, and other household rubber parts

Industry Use Cases: Ozone testing is a requirement for rubber components as they are used in an environment where ozone levels rise from engine exhaust and atmospheric contamination, notably in the automotive sector. Also, the aerospace industry requires aircraft cabin seals and fuel system components to be ozone-resistant. Electronics manufacturers use ozone rooms to determine cable insulation integrity. In all instances, of course, it is the aim to determine in-service performance under accelerated lab conditions before the product ever gets into service.

International test standards that cover ozone testing include ISO 1431-1, ASTM D1149, DIN 53509, and BS 903 Part A43. Effective Lab India’s ozone test chambers are designed to meet these standards in their entirety so that your test results can be acknowledged and accepted throughout the world supply chains.

Rubber Testing Ozone Test Chamber Specifications, Features & Application In Rubber And Polymer Testing

To ensure the utmost technical accuracy, material compatibility, and operator safety, Effective Lab India designs its Ozone Test Chambers with unwavering precision. Following is a close-up of the key specifications and superior features that have made our chambers the No.1 choice of Indian and international rubber testing laboratories:

Technical Specifications:

• Ozone Concentration: 10 – 200 pphm (1000ppm optional purchase)
• Find details in the EasyTiger Thermocycler manual, Temperature: Ambient to 70°C (+−0.5 °C accuracy)
• Chamber Volume (100L, 150L, 250L and other special specification indoor use)
• Humidity Control: Optional humidity integrator to 30%–95% RH
• Air Velocity Air speed on the specimen surfaces (ISO 1431-1) -12–16 mm/s.
• Ozone Generator: UV or corona discharge, stable and long-life output
• Materials: Inner: Stainless steel SS304, outer surface finish with UV protection paint
• Touchscreen HMI based on PLC with data logging for real-time.
• Safety System: Automatic ozone dump and neutralizer for safe ozone disposal
• Standards: ISO 1431-1, ASTM D1149, DIN 53509, BS 903 Part A43
• Advanced Features Which Make Effective Lab India Outclass

Chambers also includes an internal ozone sensor (electrochemical or UV photometric) with an auto-correcting system that accurately adjusts ozone concentration values over the entire test cycle. This ensures no deviation from the programmed test conditions, thus providing reproducible and defensible results.

Static vs Dynamic Specimen Holders:

Rubber specimens are required to be statically elongated (fixed percentage strain) or dynamic cycling according to the test standard. Interchangeable specimen mounting frames are provided to support both setups, free from any accessories, in effective Lab India chambers.

Data Logging, Reporting:

The built-in PLC-HMI system logs Ozone concentration, temperature, humidity (if available), and test time in user-set intervals. Data can be exported through USB or a wired networked storage, creating an auditable test record for use in quality certifications and regulatory compliance documentation.

Safety-First Design:

Ozone is harmful to humans at high concentrations. In the exhaust system, we have an automatic ozone destruction unit (catalytic converter) in our chambers to prevent any ozone discharge into the laboratory atmosphere. An alarm with visual and audible signals offers extra safety for the operator.

Ozone Test: Functional Roles of Ozone in Polymer testing:

Direct reaction between ozone (a gas) and the double bonds that are found in most unsaturated rubber compounds, such as Natural Rubber (NR), Styrene Butadiene Rubber (SBR), and Nitrile Butadiene Rubber (NBR). Ozone resistance at the level of general-purpose rubbers can be achieved with certain modifications of saturated rubbers, whereas unsaturated rubbers provide only very little ozone resistance (EPDM and silicone are examples of saturated rubbers). An ozone test chamber gives material engineers an opportunity to evaluate formulations head-to-head, noodle on selecting the correct level of anti-ozonant additives, or validate a change in compound, and even establish the useful life of rubber products under realistic environmental conditions — all at controlled and accelerated cycle times.

Contact Effective Lab India for Ozone Test Chambers & Advanced Industrial Lab Equipment Solutions

Having established a credible brand in India and the world, Effective Lab India supplies excellent-quality laboratory instruments to manufacturers, research institutes, and quality testing laboratories as per required standards. News as it happens. Also, our test chamber range includes Ozone Test Chambers, Salt Spray Test Chambers, UV Weathering Chambers, Climatic Test Chambers & a variety of material testing instruments.

Engineering Excellence and Compliance

Effective Lab India has been providing Ozone Test Chambers, each of which is validated for quality before dispatch. On-site testing procedures validate the stability of ozone generation, uniformity of temperature throughout the lab, integrity of sensor readings, and efficacy of safety system mechanisms. All chambers have been designed and validated to international standards, including ISO 1431-1 and ASTM D1149, so you can be confident that your test data will meet the requirements of customers and regulators worldwide.

Customization for Diverse Testing Needs

No two needs of testing are the same, which we understand. Complete customization of chamber volume, ozone concentration ranges, specimen mounting systems, humidity integration, and control software is offered by effective Lab India. Our engineering team will design a benchtop unit for your quality lab or a large-capacity walk-in chamber for production testing based on your specific requirements and budget.

Pan-India and International Service Network

Effective Lab India has a nationwide service and support network with a team of trained application engineers for Installation, Commissioning, Operator Training, Calibration, and Preventive Maintenance. And what happens after the unit is delivered — our commitment does continue even later via technical support, which we are providing for every chamber to guarantee that it will work at its capacity more and more all over its lifetime. We have recently introduced to serve International clients via a network of authorized distributors throughout Southeast Asia, the Middle East & Africa.

Trusted by Industry Leaders

Ozone Test Chambers and environmental testing instruments have earned the trust of many top manufacturers in automotive, pharmaceutical, electronics, and polymer industries. Effective Lab India has built a reputation for reliability, accuracy, and after-sales service from Tier-1 automotive suppliers who have successfully validated their rubber seal compounds to polymer research labs researching elastomer formulations. By buying a test chamber from Effective Lab India, you not only buy a test chamber but partner with an organization that is invested in the long-term success of your quality assurance program.

Frequently Asked Questions (FAQs) For Rubber Testing Ozone Test Chamber

Q1. Q: What is an Ozone Test Chamber, and how does it help with rubber testing?
A Rubber Testing Ozone Test Chamber is a lab instrument that inadvertently produces an ozone-rich atmosphere to mimic and hasten the deterioration of rubber and polymer materials that usually occur when exposed to real-world conditions. This is important, since ozone — even at atmospheric trace levels — assaults unsaturated rubber compounds, resulting in surface cracking that can jeopardise the sealing, mechanical, and safety functions of rubber parts. Testing takes place in an Ozone Test Chamber to confirm material formulations, qualify suppliers, and test the longevity of the final product before it is offered for sale.

Q2. Global Technical Regulation 16- Ozone and Appearance of Tires?
The main established international standards for ozone resistance test for rubber include ISO1431-1 (Static and dynamic ozone cracking), ASTM-D1149, 2002 Standard test methods for rubber deterioration in an ozone atmosphere, DIN53509 German standard of the testing by Ozone crack, BS903 Part A43 British standard equivalents.

Q3. Does an Ozone Test Chamber Come with a Lab Safe?
Yes, with adequate design and maintenance, an Ozone Test Chamber is safe to run in a laboratory. Effective Lab India has integrated a catalytic ozone destruction unit into the exhaust system that heals any ozone generated during UV-C cleaning before it escapes to the lab environment, keeping exposure levels well within occupational health limits.

Q5. Is the Ozone Test Chamber customized to suit a specific testing requirement by Effective Lab India?
Absolutely. Approach: Effective Lab India provides a customized environmental testing solution. Word count: 124 Our engineers collaborate with customers to customize chamber volume.
